Graphics Engine
NVIDIA® GeForce RTX™ 3080
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
GDDR6X 10GB
Engine Clock
OC Mode - 1740 MHz (Boost Clock)
Gaming Mode (Default) - GPU Boost Clock : 1710 MHz , GPU Base Clock : 1440 MHz
CUDA Core
8704
Memory Speed
19 Gbps
Memory Interface
320-bit
Resolution
Digital Max Resolution:7680x4320
Interface
HDMI Output : Yes x 2 (Native) (HDMI 2.1)
Display Port : Yes x 3 (Native) (DisplayPort 1.4a)
HDCP Support : Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Recommended PSU
850W
Power Connectors
2 x 8-pin
Accessories
1 x Collection card
1 x Speedsetup manual
1 x TUF certificate of Reliability
Software
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
11.81 " x 5 " x 2.04 " Inch
29.99 x 12.69 x 5.17 Centimeter
Slot
2.7 slot
Note
* All PSU recommendations are based on Intel® Core™ i9 or AMD Ryzen™ 9 power consumption.

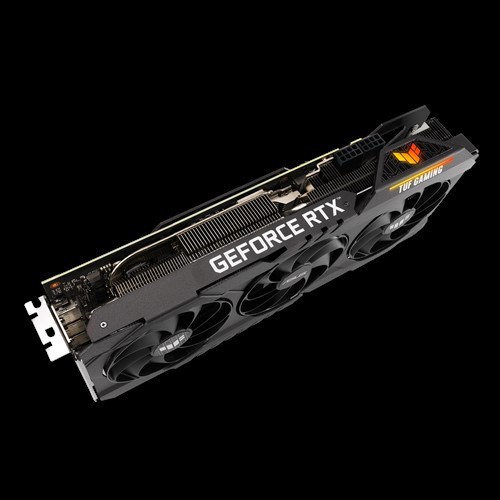

TUF GAMING GeForce RTX™ 3080 buffed-up design with chart-topping thermal performance.
NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.
Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
Military-grade Capacitors and other TUF components enhance durability and performance.
GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
BUILT TUF
The TUF Gaming GeForce RTX™ 3080 has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, independent heatsinks for the GPU and memory keep thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, a new GPU bracket, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new “old faithful”, this card has your back.
