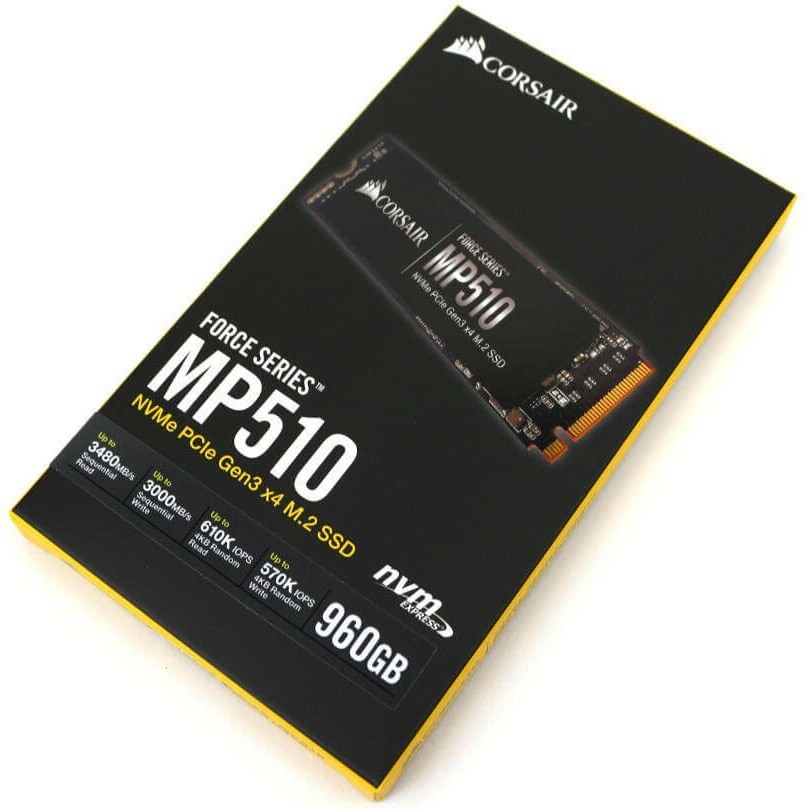

CORSAIR MP510 Force Series 480GB/960GB M.2 SSD

SSD Unformatted Capacity 1920 GB

SSD Smart Support Yes

Weight 0.055kg

SSD Interface PCIe Gen 3.0 x4

SSD Max Sequential Read CDM Up to 3,480MB/s

SSD Max Sequential Write CDM Up to 2,700MB/s

Max Random Write QD32 IOMeter Up to 530K IOPS

Max Random Read QD32 IOMeter Up to 485K IOPS

Form Factor M.2 2280

Dimension 80mm x 22mm x 3mm

Application Consumer Client



NAND Technology 3D TLC NAND

Voltage 3.3V, +/- 5%

Endurance 3,120 TBW

TBW 3120

MTBF 1,800,000 Hours

DEVSLP L1.2 < 2mW

Encryption AES 256-bit Encryption

Storage Temperature -40°C to +85°C

SSD Operating Temperature 0°C to +70°C

SSD Shock 1500 G

Storage Humidity 93% RH (40° C)

Operating Humidity 90% RH (40° C)

Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G


EXTREME STORAGE PERFORMANCE

All-new extreme data performance controller delivers up to 3,480MB/sec sequential read, and up to 3,000MB/s sequential write, for blazing fast read, write and response times.
