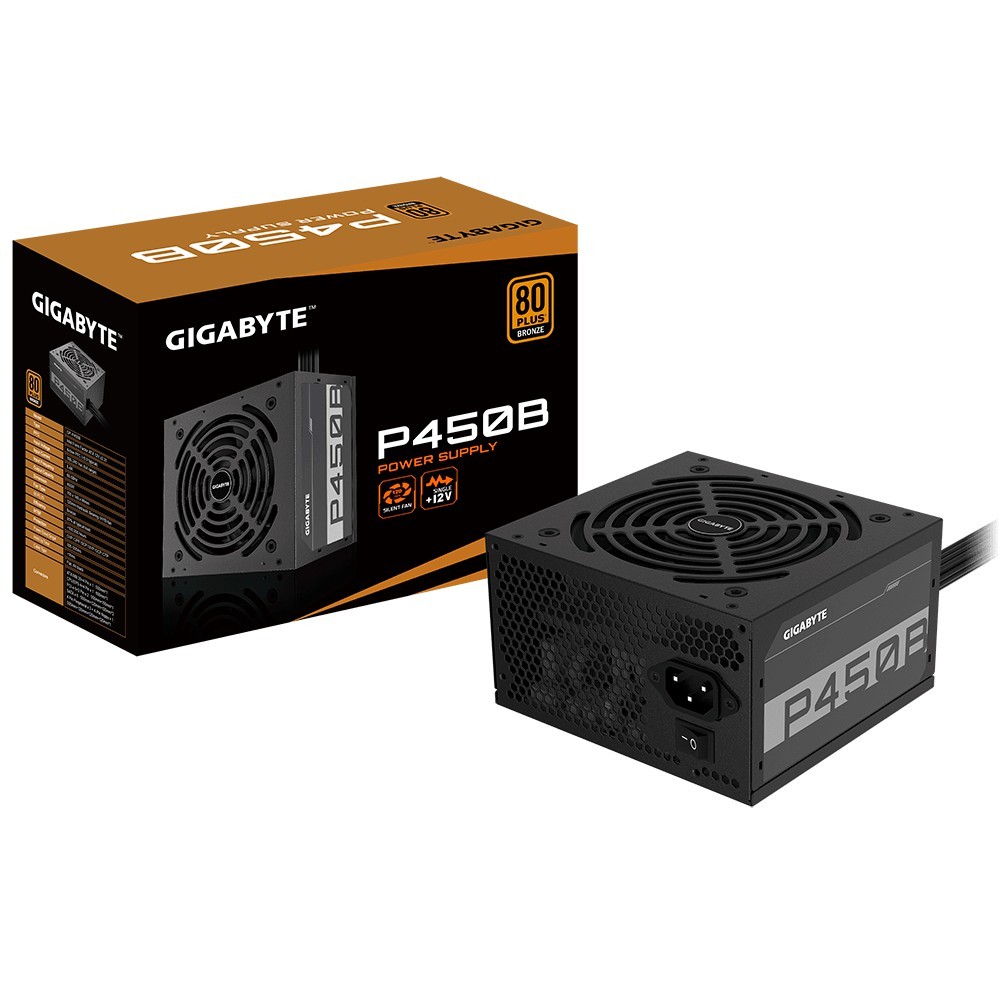

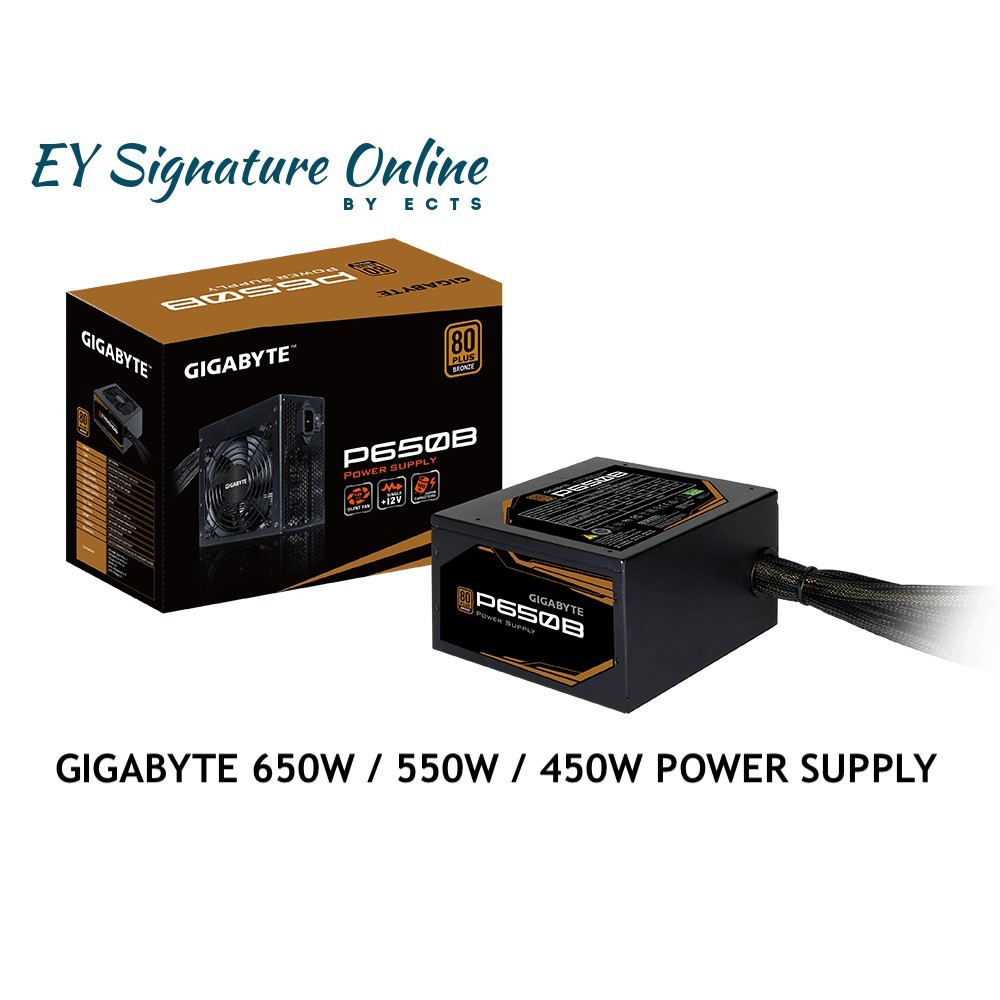

GIGABYTE 650W/550W/450W POWER SUPPLY (GP-P650B/GP-P550B/GP-P450B)

Model : P650B
Type : Intel Form Factor ATX 12V v2.31
PFC : Active PFC (>0.9 typical)
Input Voltage : 1‎00-240 Vac (full range)
Input Current : 9‎A-4A
Input Frequency : 5‎0-60 Hz
Output Capacity : 6‎50W
Dimension : D150 x W140 x H86 mm
Fan Type : 1‎20mm Hydraulic Bearing Fan
Efficiency : Up to 85% at typical load
MTBF >100,000 hours
Protection : OPP/UVP/OVP/SCP/OCP
Regulatory
CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
Connectors
ATX/MB 20+4 Pin x 1
CPU/EPS 4+4 Pin x 1
PCI-e 6+2 Pin x 4, SATA x 6
4 Pin Peripheral x 3
4 Pin Floppy x 1

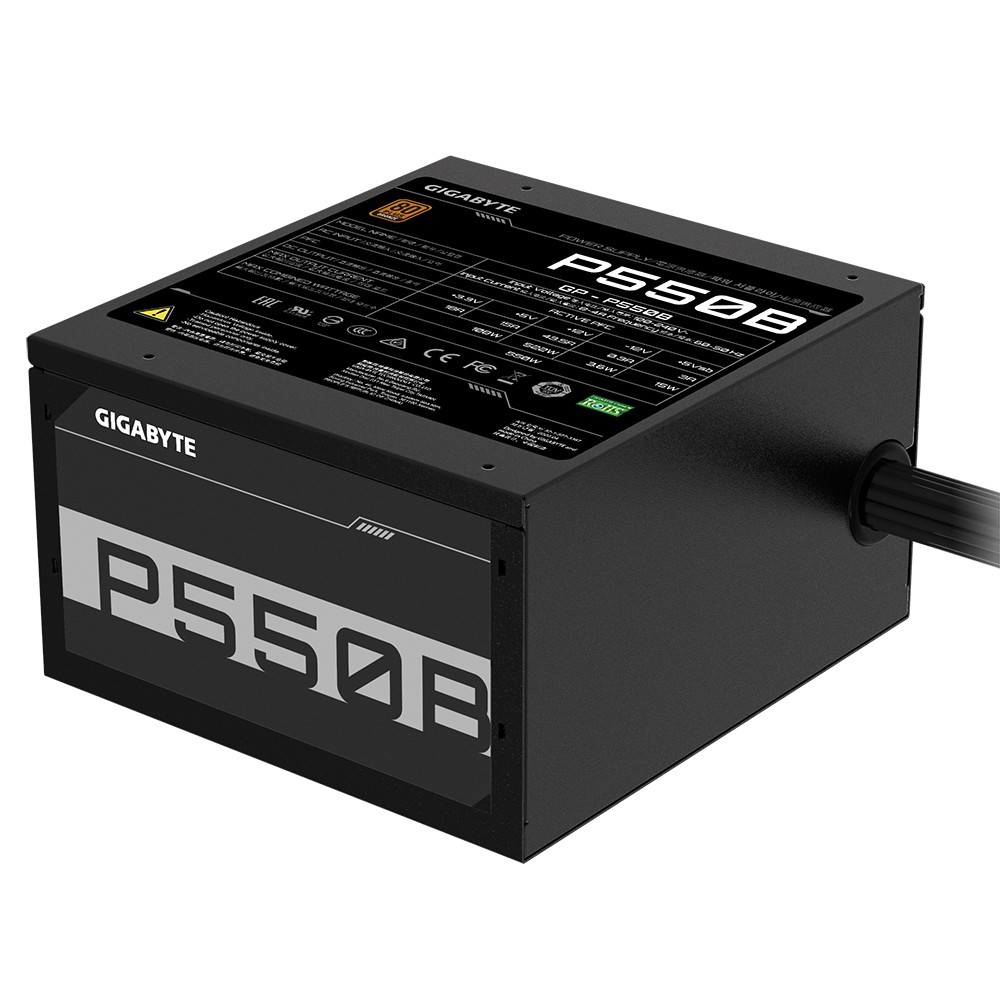

Model : P550B
Type : Intel Form Factor ATX 12V v2.31
PFC : Active PFC(>0.9 typical)
Input Voltage : 1‎00-240 Vac(full range)
Input Current : 8‎-4 A
Input Frequency : 6‎0-50 Hz
Output Capacity : 5‎50W
Dimension :1‎50 x 140 x 86 mm
Fan Type
1‎20mm Hydraulic Bearing (HYB) Fan
80 PLUS
Bronze
Efficiency
8‎5% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
1‎00-500ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1

80 PLUS BRONZE CERTIFIED
80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
