GIGABYTE AORUS 750W/850W 80+ GOLD POWER SUPPLY GP-AP850GM GP-AP750GM

Model : GP-AP850GM
Type : Intel Form Factor ATX 12V v2.31
PFC : Active PFC (>0.9 typical)
Input Voltage : 1‎00-240 Vac (full range)
Input Current : 1‎0A
Input Frequency : 4‎7-63 Hz
Output Capacity : 8‎50W
Dimension : 1‎50 x 160 x 86mm
Fan Type : 1‎35mm Double ball bearing fan
80 PLUS Gold
Efficiency : 9‎0% at typical load
MTBF >100,000 hours
Protection : OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal : 1‎00ms ~ 150ms
Hold Up Time > 16m sec at full load (115V)
Cable Type : Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 650mm
CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2
SATA x6 + 4 Pin Peripheral x2 :
550mm+100mm+100mm+100mm*1
450mm+100mm+100mm+100mm *1
4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
4 Pin Floppy x 1 : 100mm

Model : GP-AP750GM
Type : Intel Form Factor ATX 12V v2.31
PFC : Active PFC (>0.9 typical)
Input Voltage : 1‎00-240 Vac (full range)
Input Current : 1‎0A
Input Frequency : 4‎7-63 Hz
Output Capacity : 7‎50W
Dimension : 1‎50 x 160 x 86mm
Fan Type : 1‎35mm Double ball bearing fan
80 PLUS Gold
Efficiency : 9‎0% at typical load
MTBF >100,000 hours
Protection : OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal : 1‎00ms ~ 150ms
Hold Up Time > 16m sec at full load (115V)
Cable Type : Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 650mm
CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
PCI-e 6+2 Pin x 4 : 750mm*2 , 650mm+150mm*1
SATA x6 + 4 Pin Peripheral x2 :
550mm+100mm+100mm+100mm*1
450mm+100mm+100mm+100mm *1
4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
4 Pin Floppy x 1 : 100mm

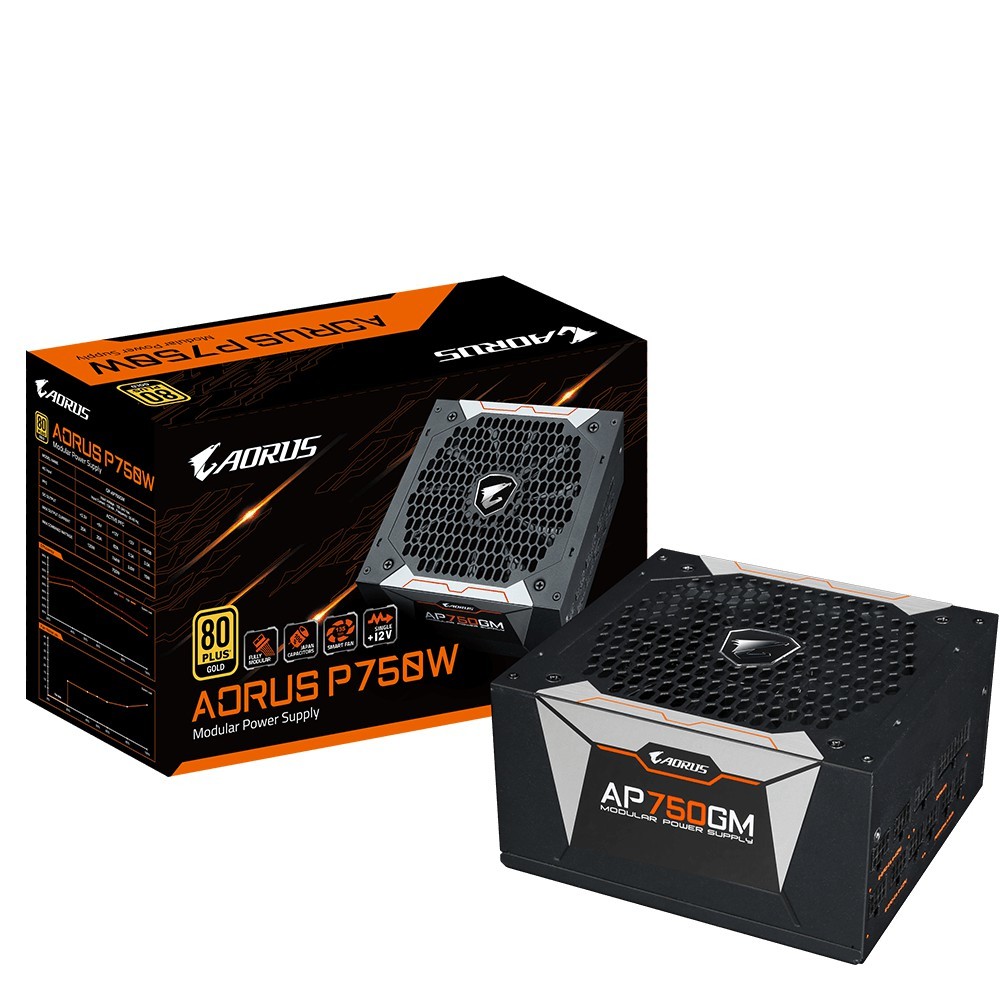

Gigabyte recently introduced two new power supplies to their premium AORUS line of gaming products. The AORUS P850W and AORUS P750W are both fully modular power supplies and certified to comply with the 80 Plus Gold certifications for high efficiency. The power supplies use a 135mm smart ball bearing fan for cooling that turns off during system idle or under low loads. Both power supplies feature high-quality components including 100% Japanese made capacitors and come backed by a 10-year warranty!
