TRANSCEND M.2 SATA III MTS830S 128GB/256GB/512GB/1TB/2TB (TLC 3D NAND) WITH D-RAM CACHE SSD

FOR MORE INFORMATION PLEASE VISIT OUR WEBSITE AT:
www.ects.com.my

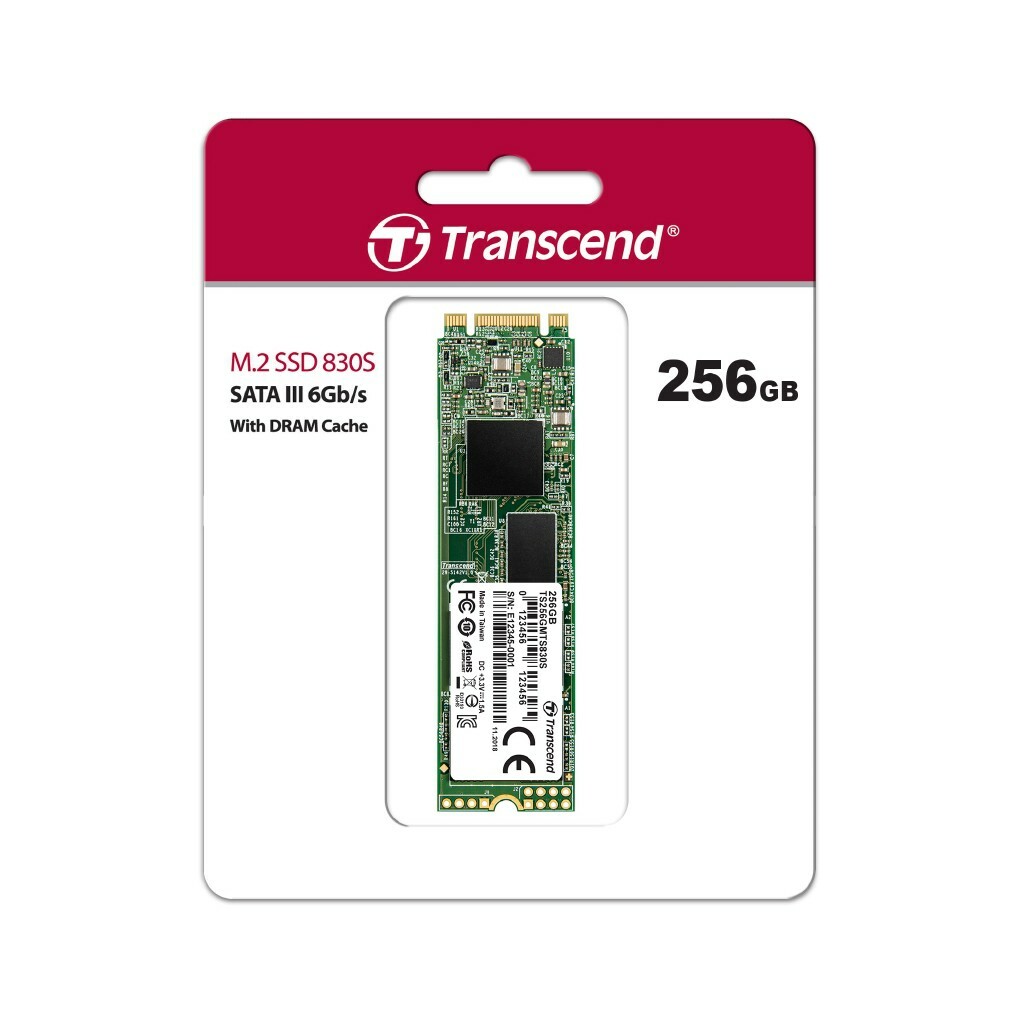

Appearance
Dimensions 80.0 mm x 22.0 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight 9 g (0.32 oz)
Type
M.2 2280
Interface
Bus Interface
SATA III 6Gb/s
Storage
Flash Type
3D NAND flash
Capacity
128 GB/256 GB/512 GB/1 TB/2 TB
Operating Environment
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark)
2 TBup to 560/520 MB/s 1 TBup to 560/500 MB/s 512 GBup to 560/500 MB/s 256 GBup to 530/400 MB/s 128 GBup to 560/380 MB/s
4K Random Read/Write (IOmeter)
2 TB up to 90,000/85,000 IOPS 1 TB up to 85,000/85,000 IOPS 512 GB up to 80,000/85,000 IOPS 256 GB up to 45,000/70,000 IOPS 128 GB up to 55,000/65,000 IOPS
Terabytes Written (TBW)
2 TB1,120 TBW 1 TB560 TBW 512 GB280 TBW 256 GB140 TBW 128 GB70 TBW
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.3 (5 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Warranty
Certificate
CE/FCC/BSMI/KC/RCM
Warranty
Five-year Limited Warranty
Warranty Policy
Please click here for more information about the Transcend Warranty Policy.
Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.
System Requirement
Operating System
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 10
Linux Kernel 2.6.31 or later
Note
Please make sure that your computer has a M.2 slot.
Technology
TRIM & NCQ Command

S.M.A.R.T.

DDR3 DRAM Cache

Advanced Garbage Collection

DevSleep Mode
-
RAID Engine

LDPC Coding
